Construction technologies | work zone, Bat Galim, Haifa

The project is located in Sderot Bat Galim in the center as a central focus for the young population in the area as a work and learning area.
The project consists of 5 repeated but different volumes like the waves in the sea in the area of ​​the site, the use of repetitive volumes with varying ceiling heights creates entrances for light that washes the ceiling and illuminates the various spaces and enhances the feeling of those staying in it.
Placing the volumes in parallel repetition allows the space to be divided so that on the lower side are placed the various service areas compared to the high side where the living and work spaces are located.
The use of curtain walls on both facades of the building emphasizes the concrete shell of the building and its unique shape.

The integration of the wood in the openings along the building and inside it in the partition between the spaces contributes to the air flow and adds warmth to the building and its facades.
The desire was to create a walking course inside the building which allows entry from both sides and the walking course inside it exposes the passers-by to the different spaces.

​


Site Plan


Floor Plan

Roof Plan

Power transition scheme

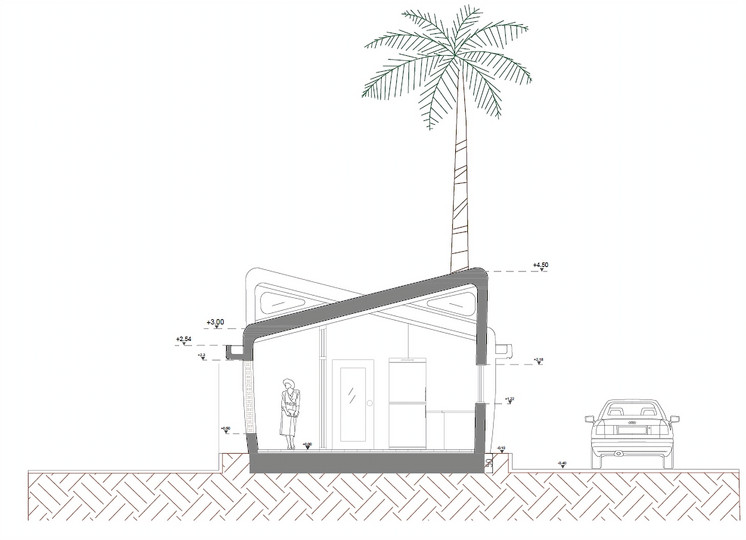

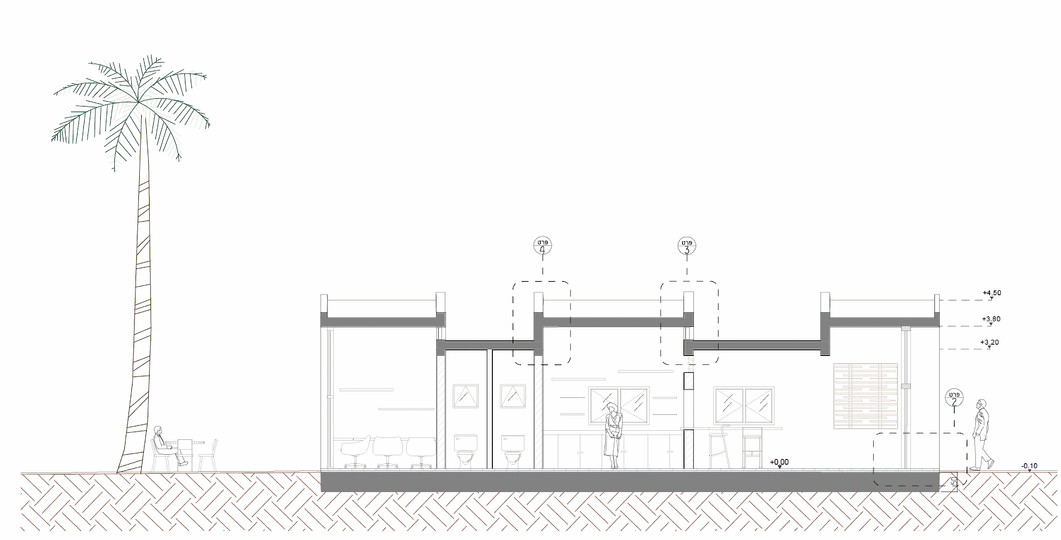

Section 1

Section 2


Section 3

Section 4


Section 5

Northwest & Southeast Facade


Section 6


Shrink section

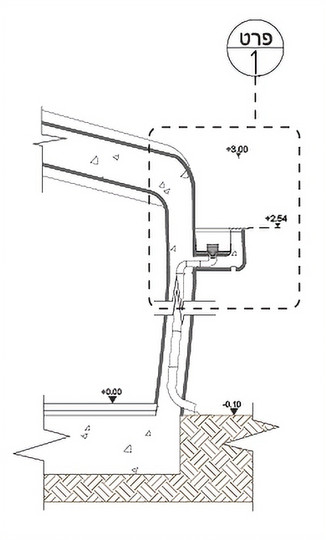

Detail 1

Detail 2

Detail 4

Detail 3
